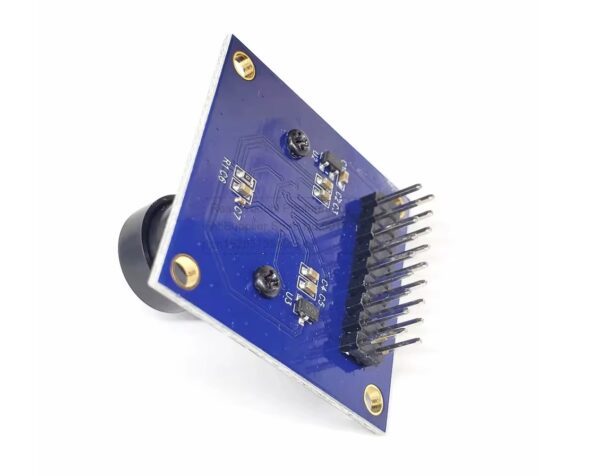

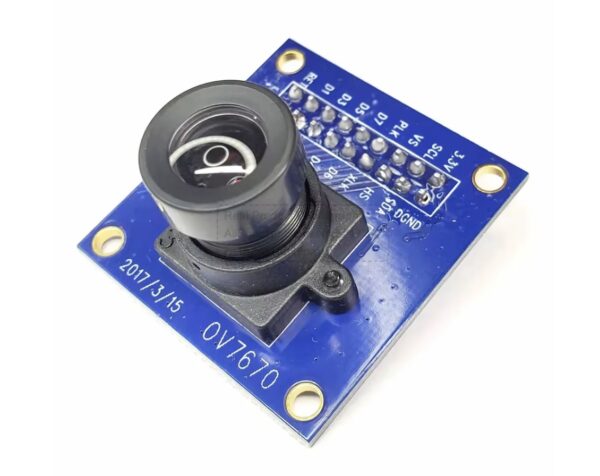

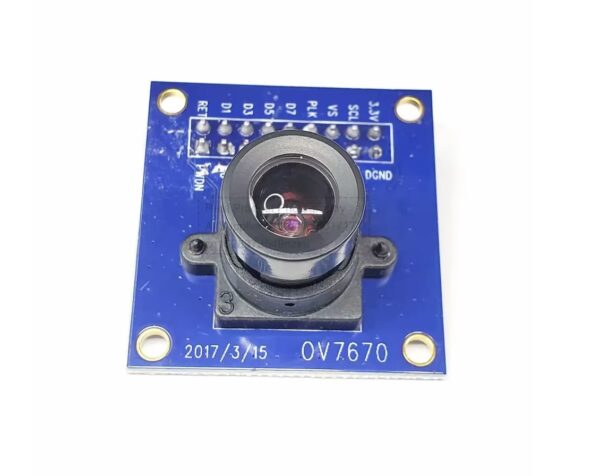

OV7670 Camera Module

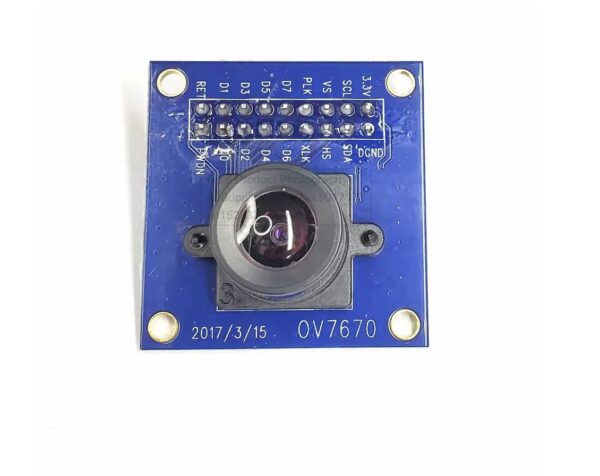

Description OV7670 Camera Module with STM32 Driver Microcontrolle The OV7670 image sensor offers all the features of a single VGA camera and image processor in a small, low-voltage operation. Through SCCB bus control, you can output a variety of resolution 8-bit influence data such as rectification, subsampling, windowing, etc. The product VGA image up to 30/ SEC. The user has complete control over image quality, data format and transmission mode. All image processing functions, including gamma curves, white balance, saturation, chroma, etc., can be programmed through the SCCB interface.   3V3: Input power supply voltage (3.3V recommended, 5V can also be used, but not recommended) GDN: ground point SIO C:SCCB interface control clock (note: some low-level microcontrollers need to pull up control, similar to I2C interface) SIO D:SCCB interface serial data input (out) end (note: some low-level microcontrollers need to pull up control, similar to the 12C interface) VSYNC: synchronous signal (output signal). HREF: Line synchronization signal output signal). PCLK: Pixel clock (output signal). D0-D7: data port (output signal). RESTE: Reset the port (pull up in normal use) PWDN: Power selection mode (pull down during normal use)   Product features: 1, high sensitivity for low illumination applications. 2, low voltage is suitable for embedded applications. 3, standard SCCB interface, compatible with 12C interface. 4, RawRGBRGB(GRB4:2:2RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output formats. 5, Support VGA, CIF, and various sizes from CIF to 40×30 6. VarioPixel sub-sampling mode. 7, automatic influence control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration, image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM. 8. ISP has the function of noise elimination and bad point compensation. 9, support image scaling. 10, lens loss compensation 11, 50/60H automatic detection. 12. Automatic adjustment of saturation (UV adjustment), automatic adjustment of edge enhancement, automatic adjustment of noise reduction Packing List: 1 x OV7670 Camera Module
