Breadboard Power Module MD-102

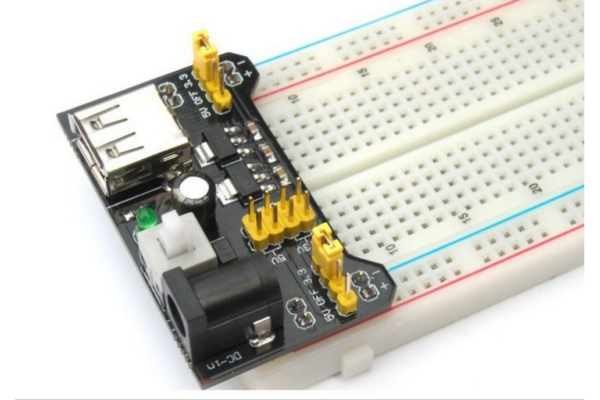

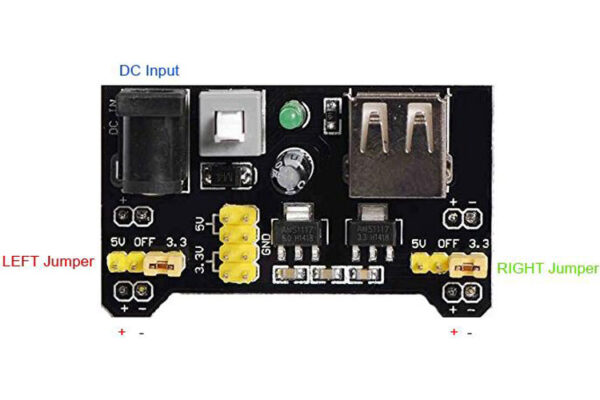

Description Breadboard or Protoboard is very useful for electronics prototyping, but when it comes to getting power source, it is a headache because most of power source does not plug directly onto breadboard. No worry, we have the solution, this is the power module for breadboard. A power supply module suitable for all MB102 range breadboard use (400 tie holes or 830 tie holes) with onboard voltage regulator providing output voltage of 5V or 3.3 V selected individually by the onboard jumper switch. Noted: DC Barrel Jack input terminal must be supplied with voltage >6.5V. Voltage lower than 6.5V will produce lower voltage at 5V output and 3.3V output. Features: Input Voltage: 6.5 to 12V DC at DC barrel jack terminal or USB (5V) Output voltage: 5V or 3.3 V DC Maximum output current: <700mA LDO: AMS1117-5.0 (5VDC) & AMS1117-3.3 (3.3VDC) Size: 5.3×3.2×2.5cm Compatible: 3.3V or 5VDC Output Pins: 2 pairs of 3.3V & 5V DC, configurable using mini jumper Come with USB A type socket Push latch button as ON/OFF switch Power indicator LED Reserve Polarity Protection at DC Barrel Jack terminal Compatible with narrow type of breadboard: (MD-102) 8.5×5.5cm(400 Holes) 16.5×5.5cm (830 Holes) Packing List: 1 x Breadboard Power Module MD-102
