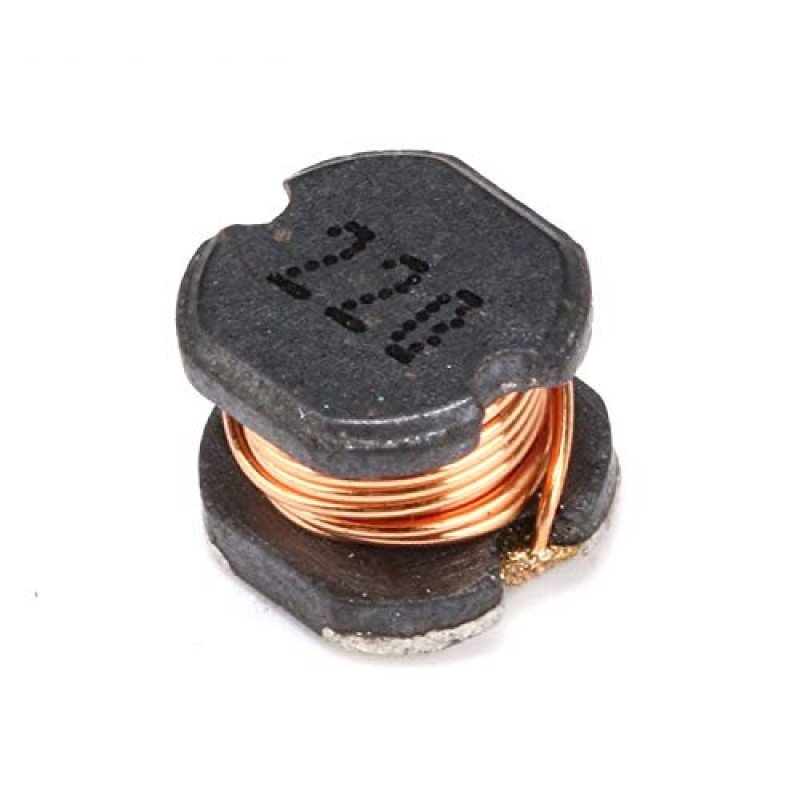

CD54 22uH (220) SMD Power Inductor

A CD54 22uH SurfacµH Mount Power Inductor (22 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads on a surface mount component. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others.Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.Features:-Ferrite drum core construction.Magnetically unshielded.Moisture Sensitivity Level: 1Halogen Free available.Operating temperature range: -40°C 100°C (including coils self temperature rise)Storage temperature range: -40°C 100°CSolder reflow temperature: 260 peak.LxWxH: 5 x 5 x 4 mmProduct weight: 0.4 gmSpecifications:-Material CoreFerriteInductance(uH)22Tolerance(%)20Current Rating (A)1.11DC Resistance (DCR)(m?) at 20°C180Frequency (MHz)2.52MountSurface Mount.Operating Temperature (°C)-40 ~ 100* product image for illustration purposes only. actual product may vary.
