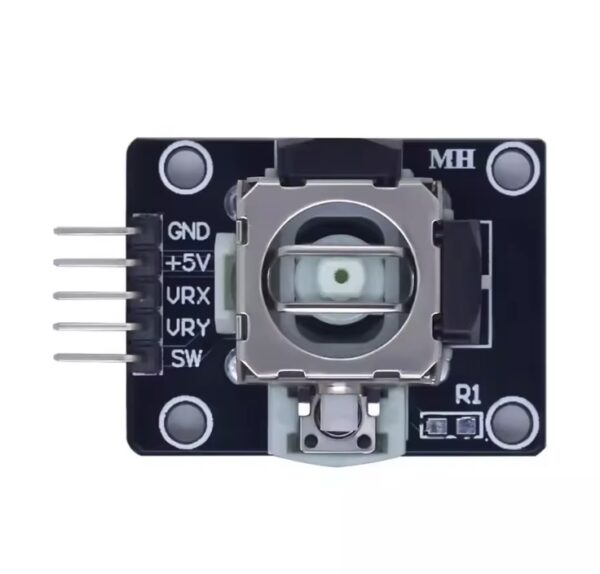

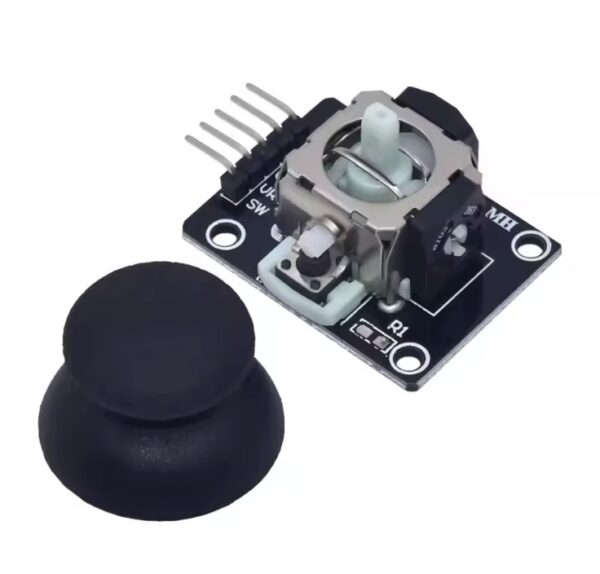

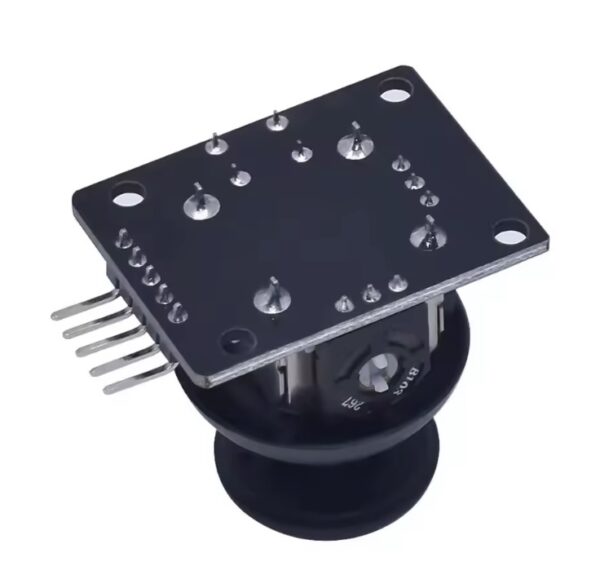

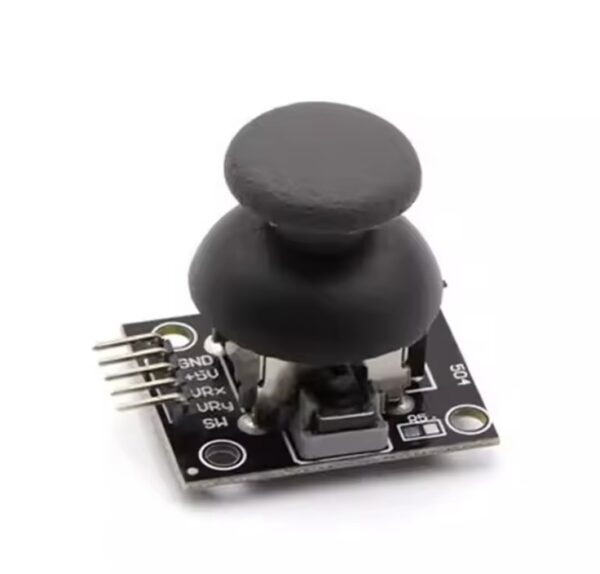

KY-023 Dual Axis Joystick Breakout Module Board

Description The Joystick module is a versatile and ergonomic input device designed for microcontroller-based projects like Arduino. It allows precise two-dimensional control along with a built-in push button, making it ideal for robotics, motor control, servos, or gaming projects. Features: • Dual Axis Control: Includes two 10K potentiometers for X and Y position tracking. • Push Button: Built-in normally open momentary switch activated by downward pressure. • Spring Return: Automatically returns to the center position for precise control. • Ergonomic Design: Thumb-friendly dome for smooth and comfortable operation. • Compact and Easy-to-Use Interface: 5-pin connection with labeled pins on a standard 2.54mm pitch for easy integration. • Durable Construction: Designed for long-term usage with a strong mechanical structure. Specification: • Potentiometer Resistance: 10K Ohms (X and Y axes). • Switch Type: Normally open (NO), momentary push button. • Pin Interface: • VCC: Power supply (typically 5V). • GND: Ground connection. • VRx: Analog output for the X-axis. • VRy: Analog output for the Y-axis. • SW: Digital output for the push button. • Pin Spacing: 2.54mm pitch (standard for Arduino and other microcontrollers). • Recommended Wiring: Use 5-pin BLS connectors for easy setup. Applications: • Robotics: Control robotic arms, wheels, or servo motors. • Gaming: DIY gaming controllers or arcade-style inputs. • Automation: Remote operation of machines or devices. • Educational Projects: Great for learning analog-to-digital conversion and input handling. Screenshot Packing List: 1 x KY-023 Dual Axis Joystick Breakout Module Board
